Twin Lobe Blowers
The Principal of Twin Lobe
The blower consists of two rotors mounted on parallel shafts inside a housing. A pair of gears causes the rotors to rotate in opposite directions. As each rotor lobe passes over the inlet, it traps a constant volume of air, carries it around the housing, and delivers it to the outlet. The displacement is positive, and the volume of air remains constant. No pressure is developed inside the blower itself; instead, pressure is created at the discharge side due to system load. The power required is proportional to the pressure generated.

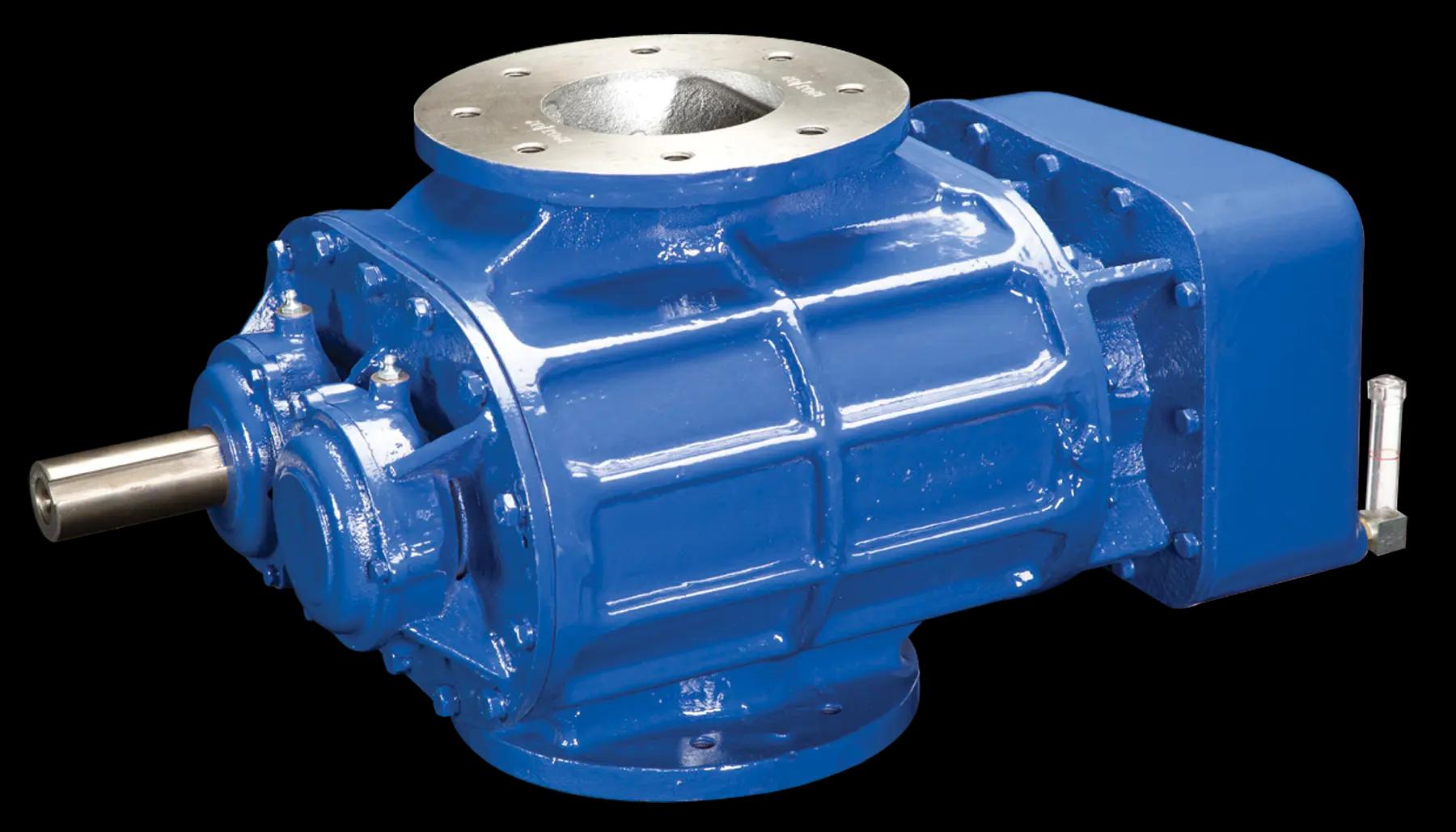

KPT Twin Lobe Blower

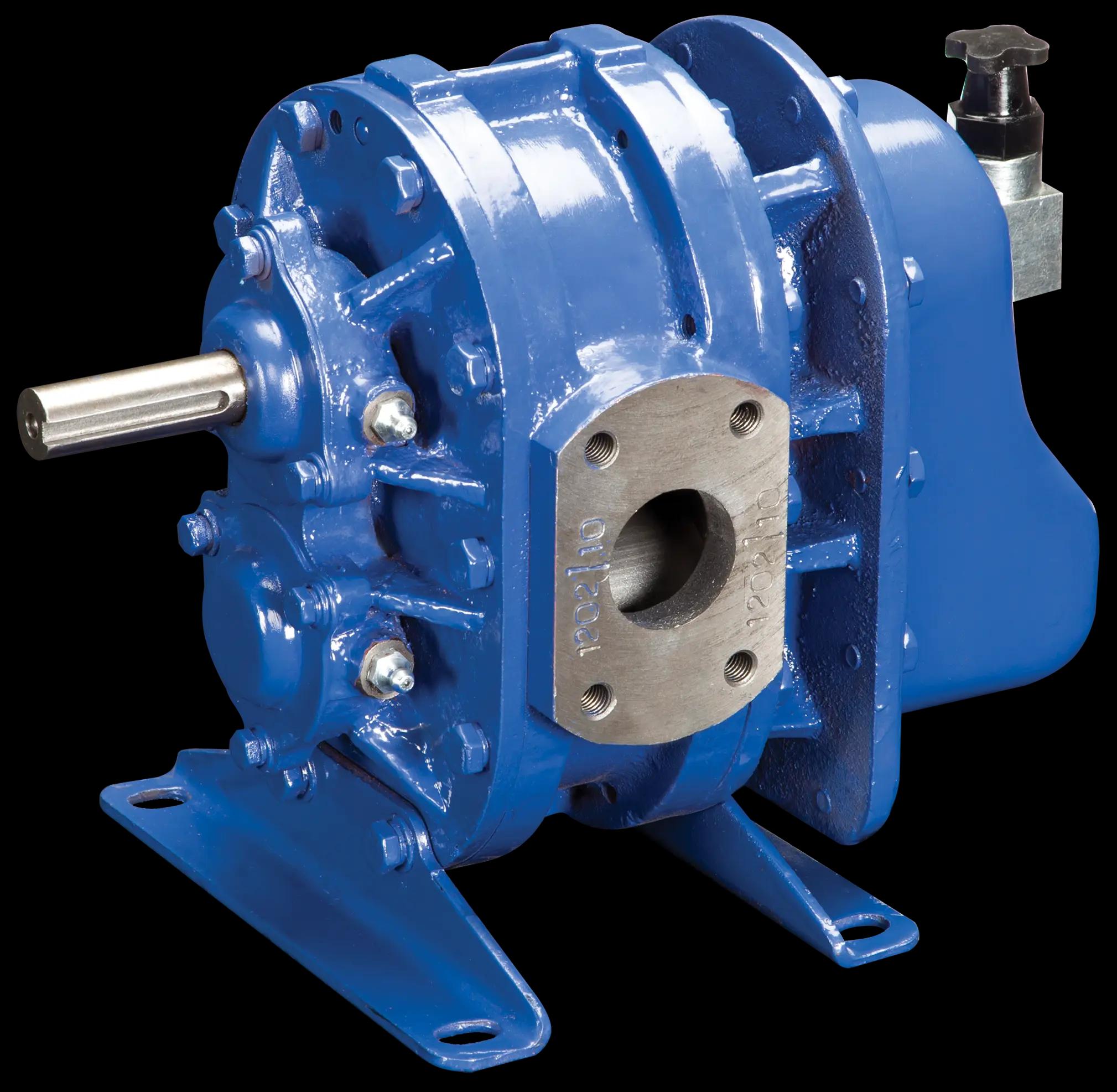

KPT Twin Lobe Blower
Special Features of Twin Lobe Blowers
Non pulsating & oil free air
All machines are air cooled
Suitable for handling air / gas
Vertical & horizontal air flow applications
Integral lobe & shaft for better performance
Dynamically balanced rotor to ensure vibration free operation
PTFE strips on rotor lobe to minimize back flow
Stainless steel / Electroplated blowers for special applications
Custom built Acoustic Hoods for sound abetment.
- Capacity 20 - 15000 cum/hour
Pressure up to 1000 m bar (10,000 mmwc)
Vaccum up to 500 m bar (5000 mmwc)
